PressioLIM

The PressioLIM is a Pressure Volume Controller (PVC) that performs in situ pressuremeter tests in manual mode (adjustement of pressure levels by the operator). It can be used with or without data recorder.

The PressioLIM meets the EN-ISO 22476-4 European standard (L. Menard).

Two versions are available:

 The PressioLIM 50, 0-50 bar (calibrated up to 80 bar).

 The PressioLIM 130, 0-130 bar for High Pressure in situ pressuremeter tests.

For the in situ pressuremeter tests acquisition, the PressioLIM is compatible with PocketLIM 5G and MiniLIM 5G data recorders.

Contact us to get a quote or request more information.

PressioLIM SPECIFICATIONS

Manual Version

Display the data without recording

 Dimensions : 620*490*220 mm

 Weight : 23 kg

128 x 64 OLED monochrome digital display

With Recorder Version

✓ Must be used with a PocketLIM 5G or MiniLIM 5G (PRESSIO or GEOTECH version)

✓ Weight : 24Kg

✓ Automatic data transfer and processing with the Lim@mail and GEO-LOG 4 option.

Common Specificities

✓ Maximal pressure of use : 130 bar for

the High Pressure version.

✓ 12-24 volts DC

✓ Drilling parameters option

✓ Front panel in silk-screen printed aluminium

✓ Dimensions : 620*490*220 mm

Integrated Elements

✓ Adapted and shockproof transport case in propylene copolymer, light material, durable and chemically very resistant

✓ Vertically addaptative tripod​

Semi-Automatic Mode

✓ Operator pressure stage control

✓ End of test has to be done by the operator

LIM@mail

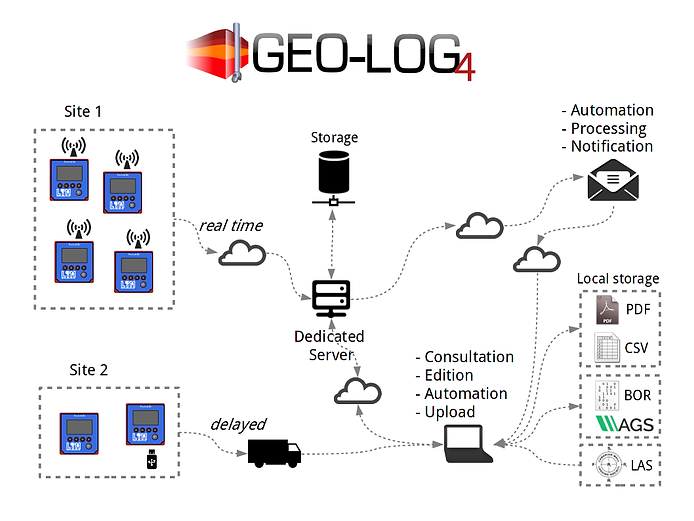

LIM@mail is an internet service working with the PocketLIM & MiniLIM 5G recorders together with  PressioLIM AUTO & PressioLIM Menard pressuremeters.

LIM@mail provides:

✓ PocketLIM / MiniLIM 5G datafiles (BOR, CSV and PDF formats)

   transfer with synchronization from the drilling site via

   3G/4G or Wifi.
Management of PocketLIM / MiniLIM 5G recorders, Email user

   addresses and data files.
Automatic sending of graphic reports in PDF format following         the presentation template defined to the email addresses chosen

   by the operator. The dates and times of the sendings emails are

   configurable.

The received files can be proccessed by GEO-LOG 4.
