The MiniLIM 6G

MiniLIM 6G Presentation

MiniLIM 6G drilling applications

MiniLIM 6G specifications

MiniLIM 6G
sensors

MiniLIM 6G presentation

Like the PocketLIM, the MiniLIM is a multi-application display and data acquisition system specially designed for outdoor use in harsh site conditions.

It is in range below the PocketLIM in order to offer a more economical solution.

The main differences with the PocketLIM 5G are:

  • A smaller screen, 4.3 “instead of 5” or 7 “;

  • No buttons to access the various menus, single use of the touch screen;

  • No 3G/4G GPRS modem;

  • Wifi module optional;

  • No access to NaviLIM & Drill@LIM functions.

The recorded data (BOR) is stored and transferred via USB to be processed with LIMSoft windows software or in the cloud with GEO-LOG 4 web application.

Contact us to get a quote or request more information.


MiniLIM 6G drilling applications

✓ Instantaneous advancement speed (VIA), in m/h or m/min;

✓ Pressure on Tool (PO), in bar;

✓ Injection pressure (PI) of drilling fluid, air or water, in bar;

✓ Rotational torque pressure (CR), in bar;

Optional :

✓ Holding Pressure (PR), in bar;

✓ Rotational Speed (VR)

✓ Injection volume in drilling phase

✓ Micropile configuration, (display and recording of volume in injection phase after drilling)

✓ Driller metric GPS positioning;

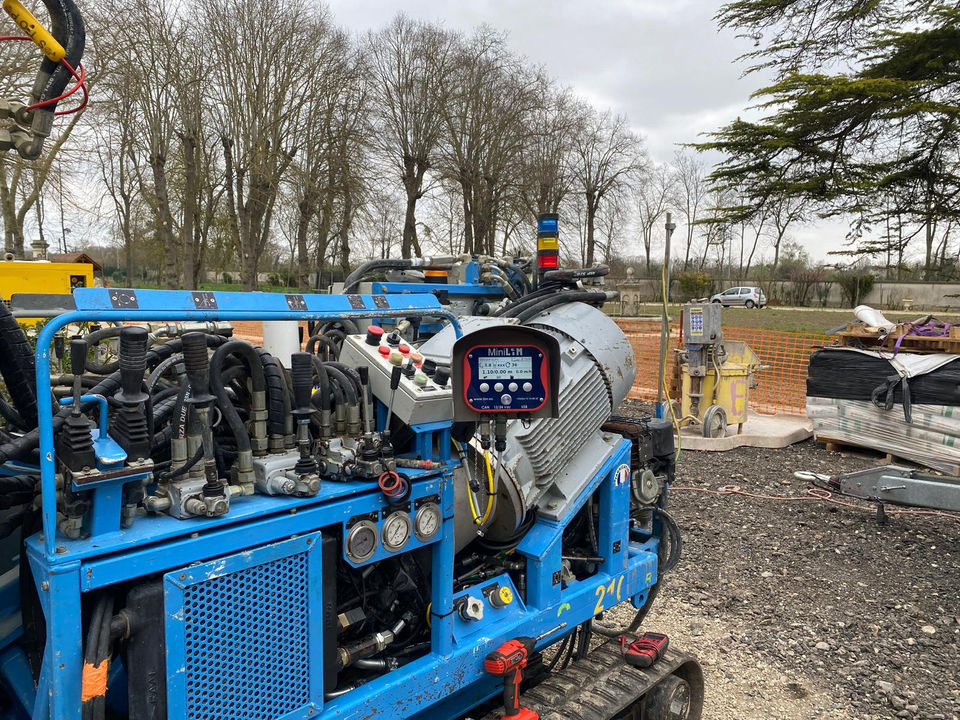

The MiniLIM-6G features a simple and effective man-machine interface, with a high-brightness Black & White screen whose various menus are accessed via high-resistance buttons adapted to site conditions.



Folder and borehole names are entered via a virtual touch keyboard.



Data files stored in the MiniLIM-6G's internal memory are automatically transferred to the GEO-LOG 4 web application via GPRS 3G/4G modem and/or Wifi, or by USB key for download.

Screenshot 2025-04-18 165724.png

MiniLIM 6G specifications

Capture d’écran 2020-11-02 à 14.27.29.

Real Time Display

Graphical display is available in realtime during the recording as well after to replay the record.

Capture d’écran 2020-11-02 à 14.27.33.

CAN BUS Technology

The sensors are connected to the MiniLIM via a single cable (network system).

Preview ⇲

Capture d’écran 2020-11-02 à 14.27.41.

Technical Specifications

✓ Dimensions : 160x122x50 mm /

6.3 " x 4.8" x 2.0“

✓ Weight : 1Kg / 2lbs

✓ Internal memory 1Gb

✓ Micro-processor 32 bit ARM

✓ Linux kernel OS

Capture d’écran 2020-11-02 à 14.31.20.

Options

Metric GPS

✓ Thermal printer (compatible)

Screenshot

Secured Sensors

The sensors are essential components of the data acquisition system..
They quantify  a physical quantity in the form of a signal (usually electric) which is then used in the development of many calculations.
To secure and take benefits of its applications, LIM is using the following sensors :

✓ Depth/speed (IAS)

✓ Pressures, rotation speed

✓ Flow

✓ Positionning

Screenshot

USB



The MiniLIM has a USB port to automatically copy BOR datafiles to an  USB flash drive.

Screenshot

User Experience (UX)

The MiniLIM has a simple Human Machine Interface (HMI) and a 4.7" color touch screen (480 x 272 pixels) with icons, color codes and virtual keyboard.
The interface of the MiniLIM is Multilingual.

MiniLIM 6G sensors

The sensors are essential components of the data acquisition system.They quantify a physical measure in the form of a signal (usually electric) which is then used for many calculations.To secure and take benefits of its applications, LIM is using different types of sensors.

DEPTH AND SPEED (IAS)

An depth encoder
a depth sensor winder
a depth measurement sensor
