ELG46: Electrical logging

This probe represents the latest generation of fully digital, high precision electric logging probes. As standard, the ELG46 probe provides long (64") and short (16") normal resistivity, single-point resistance (SPR) and self-potential (SP) data.



As an option, the probe can be supplied with a natural gamma detector to provide additional lithological information or for horizon correlation purposes. Widely employed in the domain of groundwater resources exploration and evaluation, the probe is suitable for use in formations having resistivities comprised between 10 and 25 000 Ω·m.

​

Contact us to get a quote or request more information.

Schéma de la sonde ELG46

ELG46 PROBE FEATURES

Screenshot

Technical Specifications

✓ Diameter : 46 mm

✓ Power supply : 70 to 100 VDC

✓ Max. Temp / Pressure : 70°C / 200 bar

Screenshot

Sensors Parameters

​

✓ Resistivity injection signal : 200 Hz sine wave with ALC

✓ Resistivity measuring range : 0 to 25 kΩ·m (16-bit)

✓ Resistivity resolution : 0.4 Ω·m

✓ SP measuring range : ± 1 500 mV

✓ SP resolution : 0.05 mV

Screenshot

Options And Accessories

✓ Gamma ray sensor: ø25 x 50 mm NaI(Tl) crystal

✓ Calibration box

Screenshot

Borehole Conditions

✓ Fluid-filled

✓ Open borehole

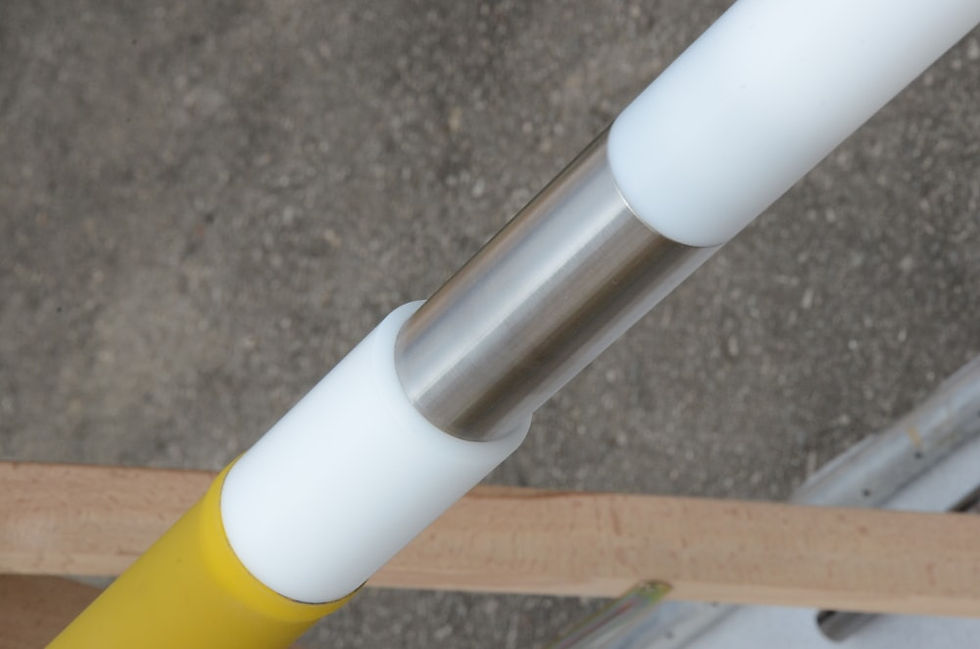

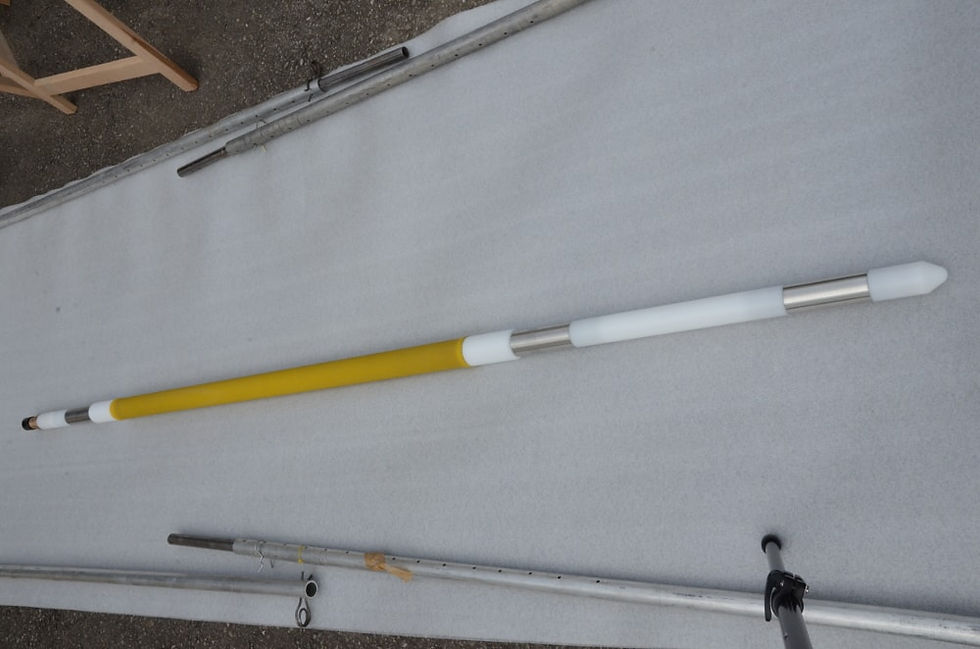

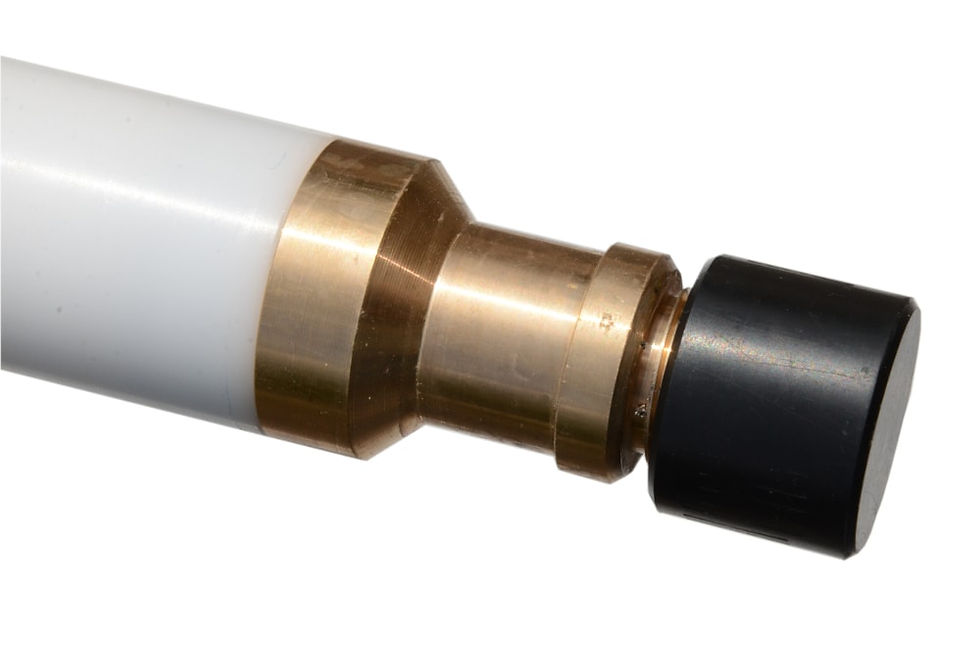

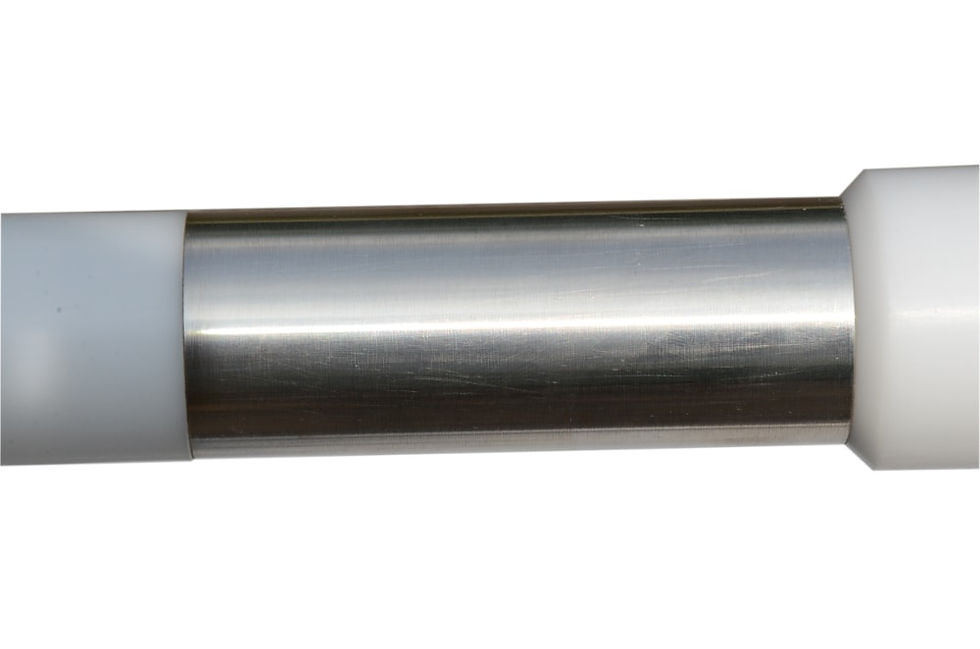

ELG46 GALLERY
