WQP48: Water Quality

The WQP48 probe provides precise readings of the principal fluid parameters of interest in a hydrogeological or environmental context.

​

A calibration interface cable, standard solutions and maintenance kit are provided with the probe to ensure performance remains within specifications. The probe calibration routines can be accessed without removing the pressure housing.

​

Contact us to get a quote or request more information.

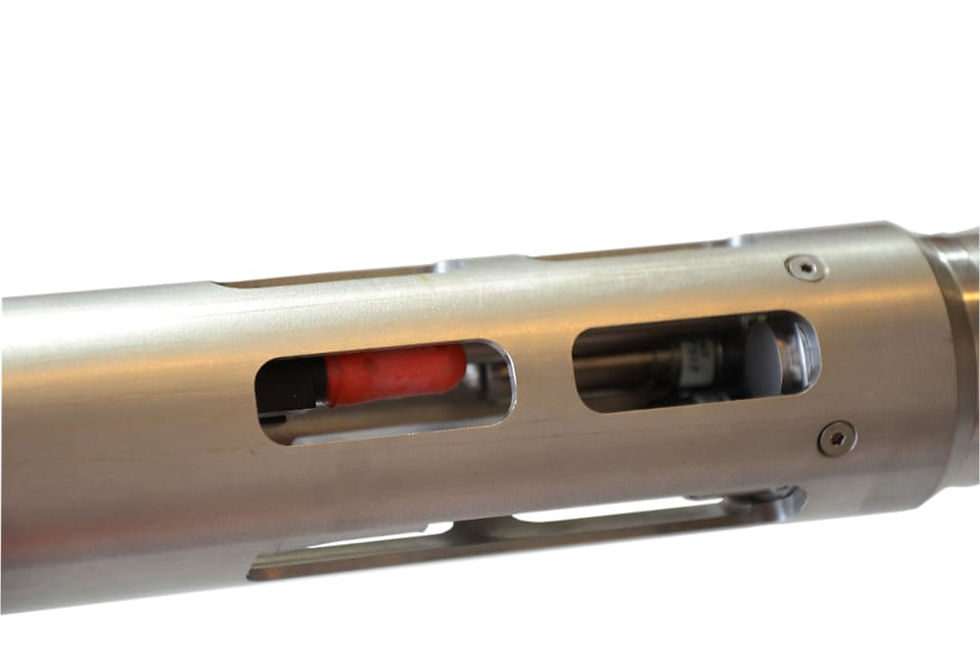

wqp48 illustration

WQP48 SPECIFICATIONS

Screenshot

Technical Specifications

✓   Diameter (sensor cage / tool body): 48 mm / 42 mm

✓ Length : 1 670 mm

✓ Weight : 7.5 kg

✓ Max. operating temperature : 70°C

✓ Max. operating pressure : 150 bar

Screenshot

Sensors Parameters

​

✓ Pressure range : 1500 dbar

✓ Temperature range : -1 to 50°C

✓  Conductivity range : 0 to 70 mS/cm

✓ Dissolved 02 range : 0 to 50 ppm

✓ pH range : 0 to 14

✓ Redox potential range : ±1000 mV

✓ Pressure resolution : 0.03 dbar

✓ Temperature resolution : 0.001°C

✓ Conductivity resolution : 0.001 mS/cm

✓ Dissolved 02 resolution : 0.01 ppm

✓ pH resolution : 0.001

✓ Redox potential resolution : 0.1 mV

​

Screenshot

Options And Accessories

✓ Additional sensors available : Nitrate, Ammonia, Chloride Sulphide, Iodide, Copper

✓ Bowspring centralisers

Screenshot

Borehole Conditions

✓ Fluid-filled borehole

✓ Open or cased borehole

​

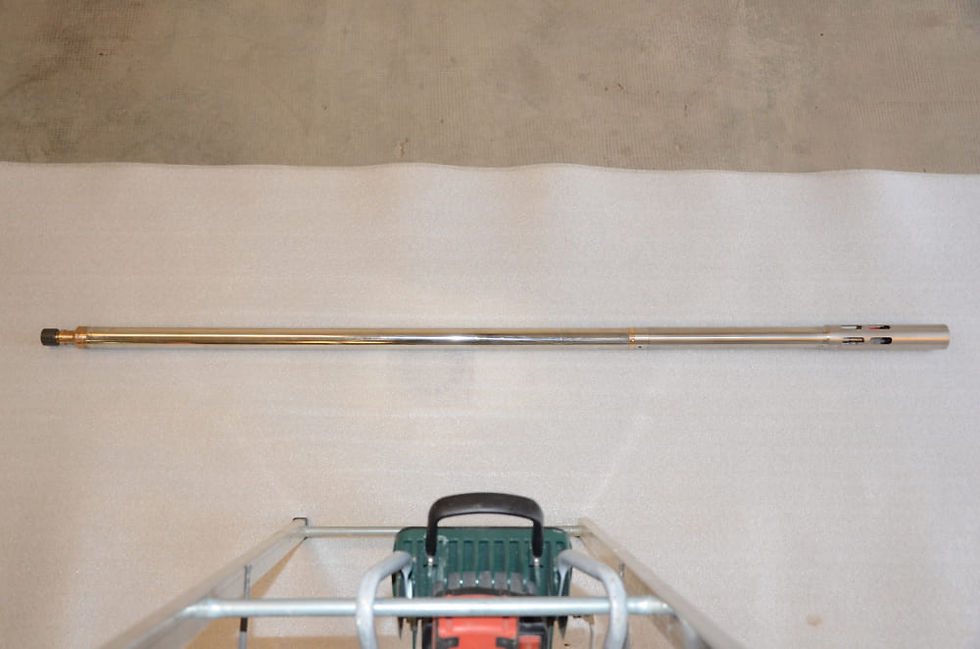

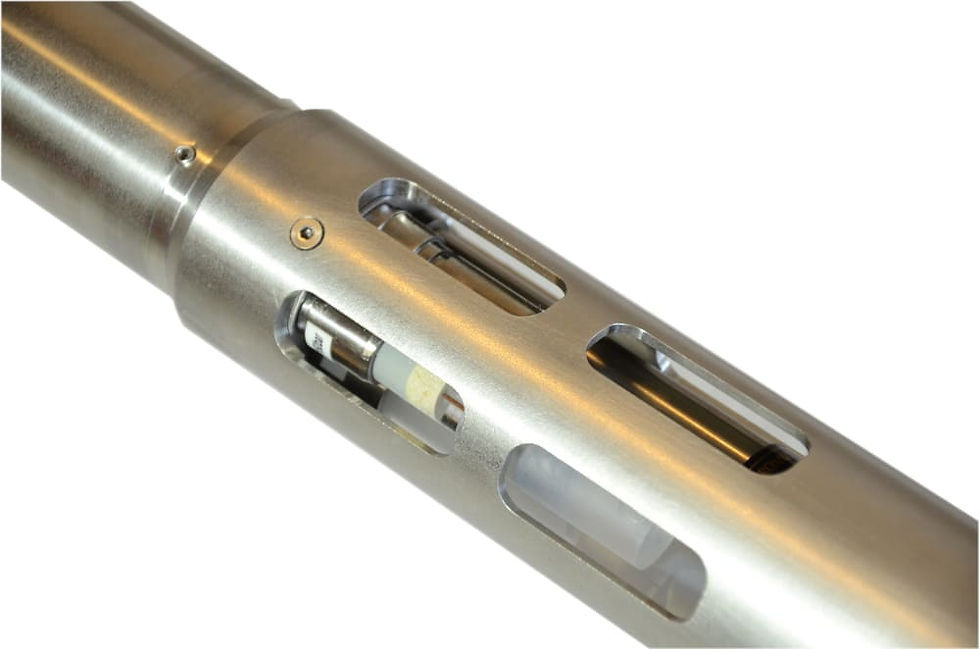

WQP48 GALLERY
