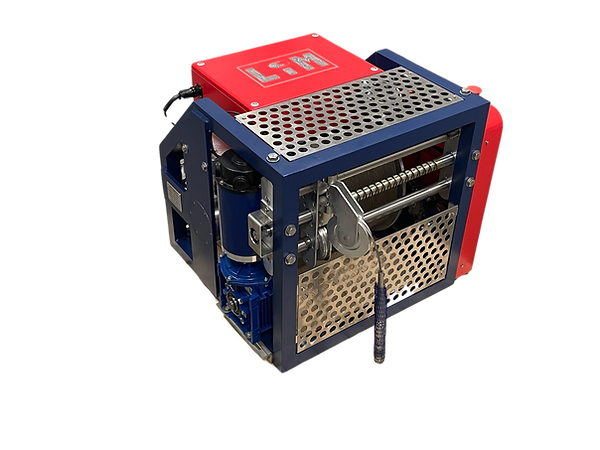

WinchLIM 600 & 1200

The WinchLIM 600 & 1200 provide a powerful yet solution for deep geophysical logging operations of 600 & 1200 m - 1968 & 3937 ft with standard 4 conductor 3/16" cable.



An integrated depth measurement system and automated cable spooling simplify the logging procedure.

​

These winches measure the weight on the cable and are capable of securing themselves if the probe gets stuck in the borehole. The safety trigger threshold can be configured.

​

Contact us to get a quote or request more information.

Le treuil de logging

WinchLIM 600 & 1200 SPECIFICATIONS

Screenshot

Automatic
Winding
System

structured winding

Screenshot

Display

Depth and speed are displayed on the control case

Screenshot

Specifications

✓ Total cable length: Max 600 m & 1200 m (3/16” cable)

✓ Maximum Winding Speed: 40 m/min

✓ Dimensions:

WinchLIM 600: 57 x 61 x 70 cm

WinchLIM 1200: 59 x 70 x 70 cm

✓ Weight:

WinchLIM 600:

54 kg w/o cable - 135 kg with 600 m of cable

WinchLIM 1200:

 85 kg w/o cable - 200 kg with 1200 m of cable

✓ Power supply: 220 VAC

✓ Motor power rating: 1200 W

✓ Wireless remote mode

✓ Weight measurement function on the cable with safety if the probe gets stuck in the borehole

Screenshot

Integrated
Depth
Encoder

High resolution > 1 mm / m
