WinchLIM 150

The WinchLIM 150 provides a powerful yet compact solution for geophysical logging operations down to depths of 150 m when equipped with standard 4 – conductor 3/16” cable.

​

Contact us to get a quote or request more information.

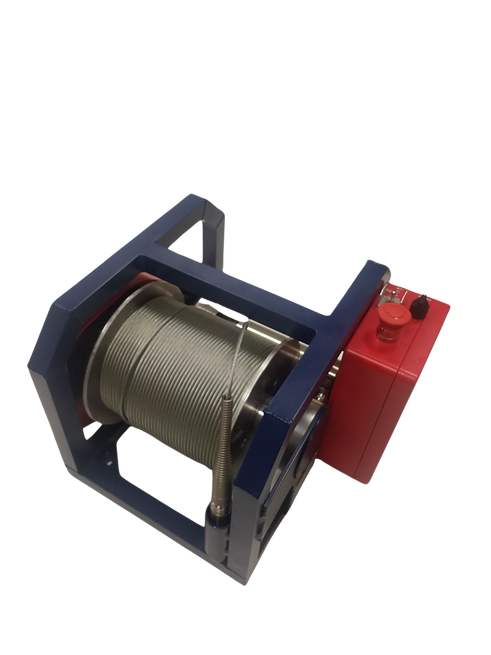

Photo d'ensemble du treuil LIM

WinchLIM 150 SPECIFICATIONS

Screenshot

Specifications

✓ Total cable length: max. 150 m

(3/16’ cable)

✓ Maximum speed: 8 m/min 12VDC -.

15 m/min 24VDC

✓ Dimensions: 41 x 42 x 32 cm

✓ Weight: 15 kg empty - 30 kg with cable

✓ Power supply: 12 VDC -24 VDC

✓ Motor power: 250 W
